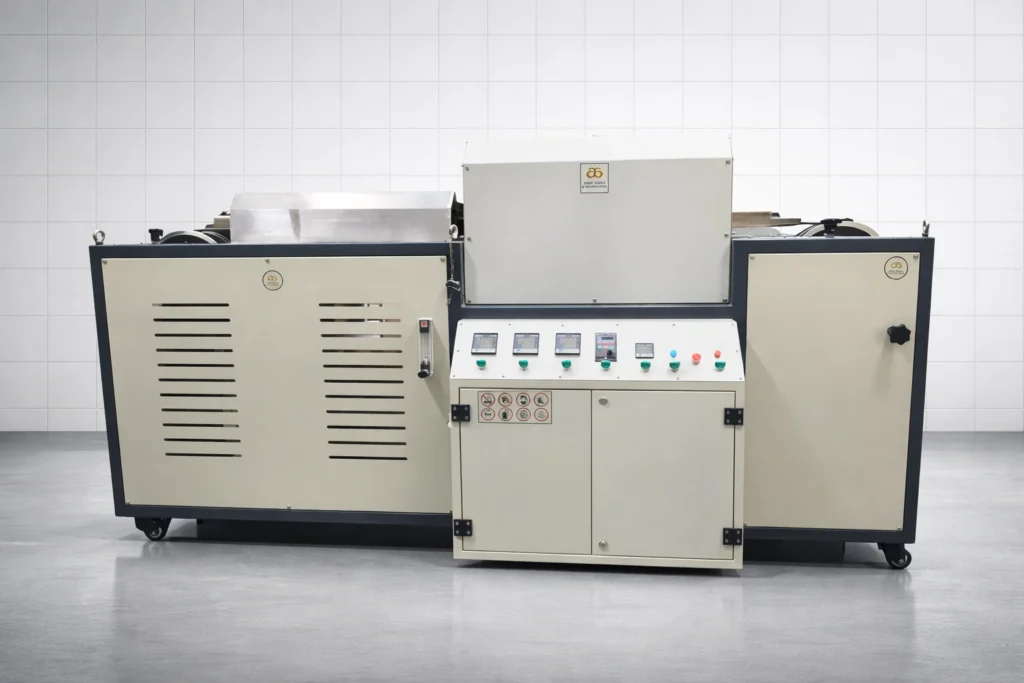

Controlled Atmosphere Belt Soldering Furnace
The Controlled Atmosphere Belt Soldering Furnace (Model: BF2500) is designed for
continuous, oxidation-free soldering of gold, silver, and jewellery components. Its conveyor belt system ensures uniform heating, precise temperature control, and consistent production quality, making it ideal for chains, bangles, and small jewellery part.
Key Features
• Continuous conveyor belt operation
• Oxidation-free soldering with controlled atmosphere
• Uniform and precise heating
• Digital temperature control with VFD speed adjustment
• Energy-efficient and user-friendly design
• Suitable for chains, bangles, and small jewellery parts
Technical Specifications
• Model: BF2500
• Maximum Temperature: 1100°C
• Power Supply: 8 kW, 3 Phase, 440V
• Conveyor Belt: 75 mm width, 6 m length
• Overall Size: 2500 × 800 × 1250 mm
• Cooling System: Chilled Water (Optional Chiller)
• Drive: ½ HP Geared Motor with VFD Speed Control
