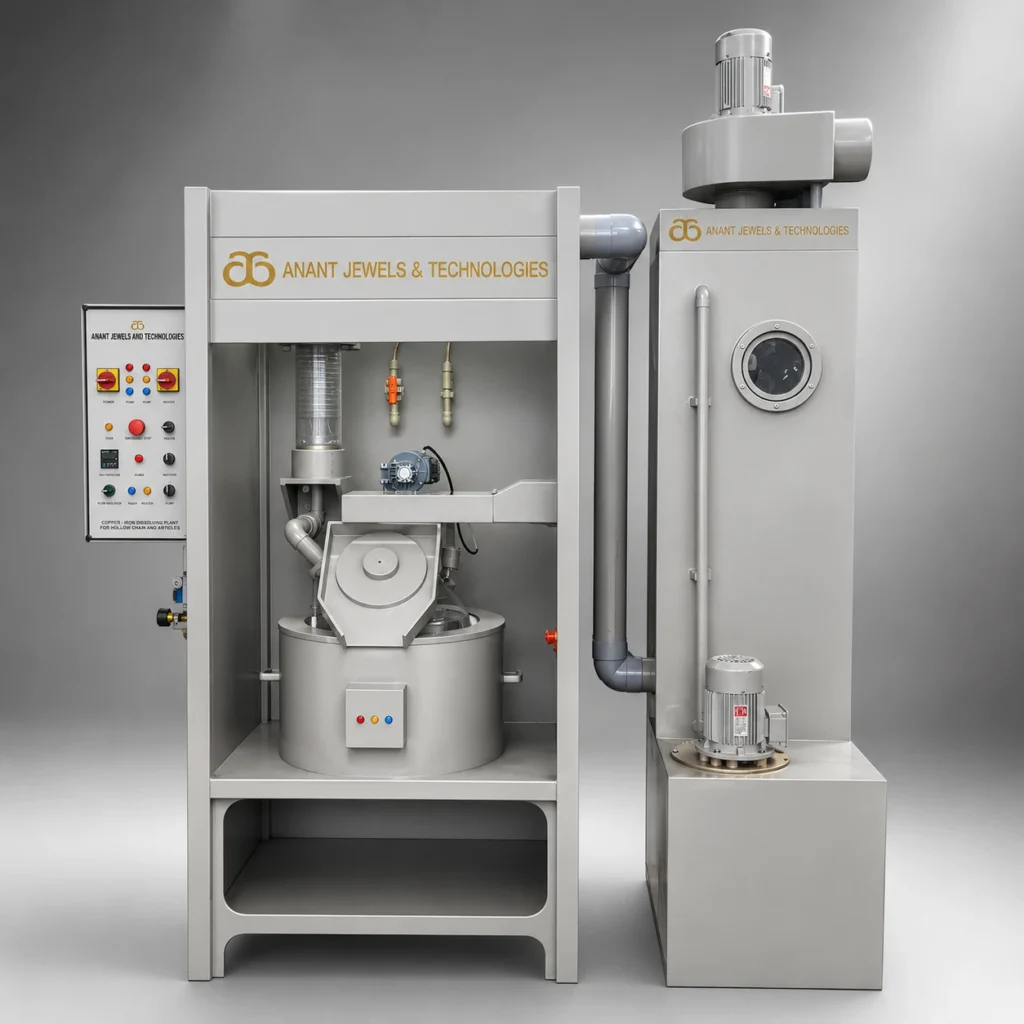

Iron Dissolving Plant for Hollow Chain & Jewellery
The Iron Dissolving Plant is specially designed
for the jewellery manufacturing industry to
remove iron cores from hollow gold and silver
chains efficiently and safely. The system
ensures uniform heating, excellent chemical
resistance, and reliable performance for
continuous production
Machine Type: Iron Dissolving Plant
Model: Single Station
Tank Capacity: 50 Litres
Tank Material: Borosilicate Glass
Heating System: 4.5 kW Electric Heater
Gear Motor: 0.25 HP
Condenser: Borosilicate Glass Condenser
Transfer Pump: Air Operated Pump
Power Supply: 415V AC, 3 Phase, 50 Hz
Electrical Components: Schneider Electric
Scrubber Type: Wet Fume Scrubber
Blower: 1 HP Top Mounted Blower
Blower Speed: 2800 RPM
Motor Supply: 415V AC, 3 Phase, 50 Hz
Application: Acid Fume Extraction & Neutralization
